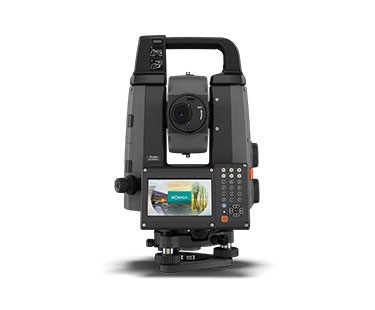

Sokkia iX-1500/700 Robotic Total Station

The iX-1500/iX-700 offers you the best of a one-person robotic instrument combined with long-range reflector less measurement capabilities and the flexibility of Hybrid Positioning™, all available in either a 1”, 3” or 5” iX-1500 or 2”, 3” or 5” iX-700.

10 Hz update rates for faster more efficient staking
150°/sec turning speed for exceptional productivity
Compact and lightweight for easier handling on site
Stay productive, stay confident with UltraTracTM prism lock technology
GNSS hybrid ready so you can handle any job site
Five-year Brushless Direct Control (BLDC) motor warranty

Sokkia iX-1500/700 Robotic Total Station

Ultra powerful

The enhanced and smarter Brushless Direct Control motor control helps to achieve more silent and smoother operation with reduced wear and tear. this solution is perfect for surveying or building construction, it is designed to stake out or layout points faster and save time to reduce cost, even in challenging conditions.

Ultra accurate

UltraTrac™ prism tracking utilises optical sensing combined with high-speed BLDC motor control. Whether working at a distance or up close, the instrument maintains prism lock making you more productive in any environment.

Ultra efficient

Take advantage of the unique combination of GNSS and robotics technologies in order to capture the points, so you have to worry about tree cover, loss of line of sight, or Difficult location. Complete any project in less than half the time.

Features

Fast and powerful EDM – 800 m non-prism and 6,000 m prism range
Rugged, waterproof and dustproof IP65 design
Bright colour touchscreen display for on-board data collection
Integrated Bluetooth® and advanced LongLink™ communication for up to 600 m (1,968 ft) fully robotic range
Brushless Direct Control motors with a turning speed of 150º per second
Advanced UltraTrac technology
Raised multi-key functionality
Add the RC-PR5A remote for up to 300 m (984 ft) “single tap” prism re-acquisition
