Trimble R12i GNSS Receiver System

The Trimble R12i GNSS System is much faster and more accurate, featuring an enhanced Trimble ProPoint™ GNSS positioning algorithm. Adding the new TIP™ (Trimble Inertial Platform) technology, this gives pole tilt compensation to ensure accurate and efficient point recording or staking, even in tough conditions, without needing the pole to be perfectly vertical.

Such teams will, therefore, be able to carry out surveys in places where it was either too challenging or impossible, thereby greatly improving their productivity. Some of the finest features are the TIP technology, i.e., making use of an IMU that compensates for the receiver tilt-an unparalleled performance in areas with electromagnetic interference.

The R12i GNSS receiver also integrates ProPoint technology, ensuring that accuracy is reliably delivered and productivity is high even in difficult conditions, such as near buildings, steep slopes, or moderate vegetation.

With enhanced signal processing within the ProPoint system, it enables precise positioning even in complicated environments that may contain obstacles or signal reflections. The 672-channel capability of the receiver with Trimble 360 technology enables signals from all visible satellite systems to be received simultaneously, hence accurate positioning on even the most difficult terrains.

Key Features of the Trimble R12i GNSS Receiver Include:

Trimble® Inertial Platform: IMU-based tilt compensation system offers calibration-free performance, immune to magnetic interference.
Trimble ProPoint GNSS Technology: Advanced positioning technology to improve accuracy in challenging GNSS environments.
672-Channel Receiver with Trimble 360°: Comprehensive satellite tracking technology supports all available satellite systems for unmatched positioning accuracy.
CenterPoint RTX: Delivers RTK-level accuracy in under one minute anywhere in the world with satellite corrections, giving you precise measurement wherever you are. Trimble xFill : Keeps your survey running by continuing to operate at RTK-level accuracy after an RTK signal interruption. Compatibility with Trimble Access ™: Optimized for use with Trimble Access field software, offering seamless data collection. Mobile and Wireless Support: supports fully Android™ and iOS devices, plus mobile telephony, Bluetooth ® and Wi-Fi for enhanced communication and flexibility.
Military-grade Toughness: Engineered to withstand military climates and mechanical standards and rated IP-67 for water and dust resistance. Ergonomic Design: Built for comfort, it is easy for the user to handle the device for a longer period. Long-lasting Battery: Full-day battery life, with status indicator for constant field performance. Internal Storage: 6 GB of internal memory to store enough data. Augmented Reality Integration: Supports Trimble SiteVision for augmented reality views of your project data interactively.
Advanced Performance: The tilted compensation by IMU sensor helps to provide high performance even in challenging conditions to increase survey productivity.
R12i LT GNSS Performance: The Trimble R12i LT is the most advanced performance, speed, and accuracy GNSS receiver from Trimble. The inertial tilt compensation system eliminates leveling of the pole. This enhances productivity by making faster measurements. The R12i LT has higher GNSS performance, thus enabling it to become the most advanced positioning solution developed by Trimble.

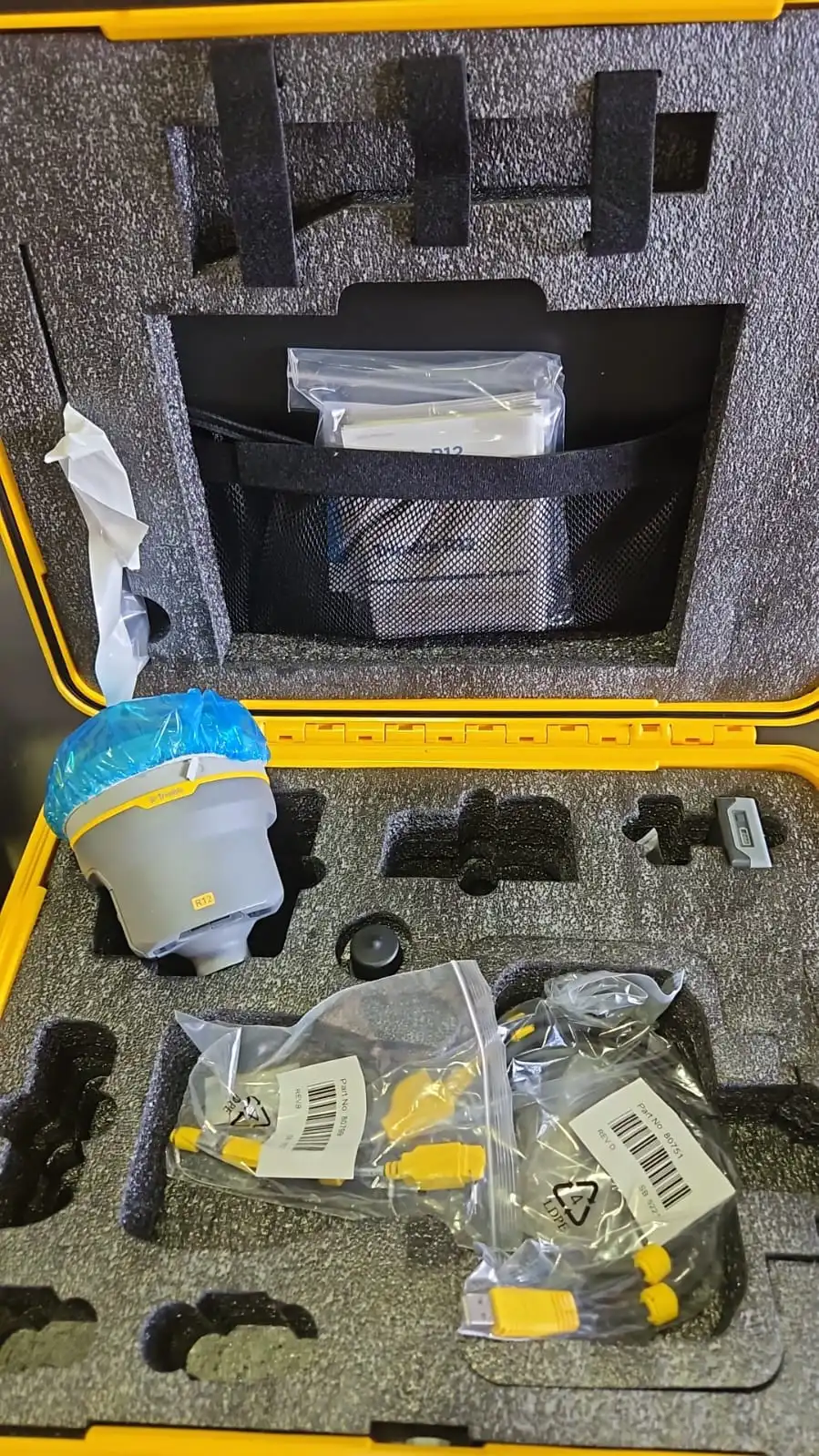

Comprehensive Setup Includes:

Trimble R12i GNSS receiver with Full Base and Rover configurations
Configuration option: NMEA
TRM 220V, 19.0V, 65W Charger, 2BAT
Base station radio with antenna
GNSS antenna
Dual Li-ion battery, charger, accessory
Carrying case, USB cables, powers supplies
Adapter for quick attach to pole top
Designed for High-Precision Surveys: The R12i is ideal for geodetic, topographic, and construction surveys, offering reliability and flexibility with an ultra-modern 672-channel GNSS processor. It supports multi-frequency signals from all satellite constellations and correction systems, making it suitable for a variety of conditions.

This model’s tilt compensation system is a significant upgrade over the basic version, allowing easy measurement of hard-to-reach or obstructed areas, while boosting field productivity without the need for manual leveling.
